How to Copy and Customise Charts

A Turbo-Chart file may contain multiple charts, and certain features of a chart are custom to each chart including:

• Options found in the CHART>CHART OPTIONS Tabs such as the Top Image, Rotation/Axis settings, Location & Date Ranges etc.
• The displayed Dataset for that chart

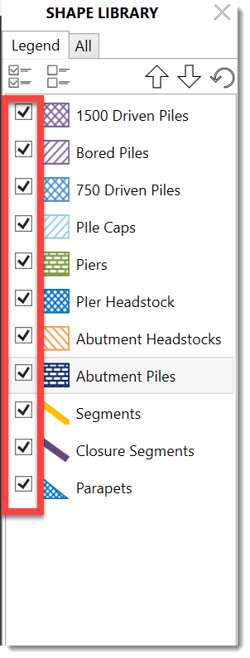

• Selection of Visible ShapeCodes

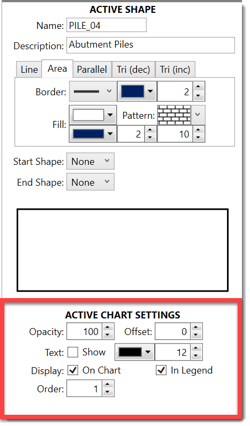

• All ShapeCode settings found in the "Active Chart Settings"


See this article for a full list of which settings are Chart specific: Which Elements of Turbo-Chart are Chart Specific

Managing Charts

Charts can be managed by either:

• Selecting CHART>MANAGE CHARTS from the menu, or

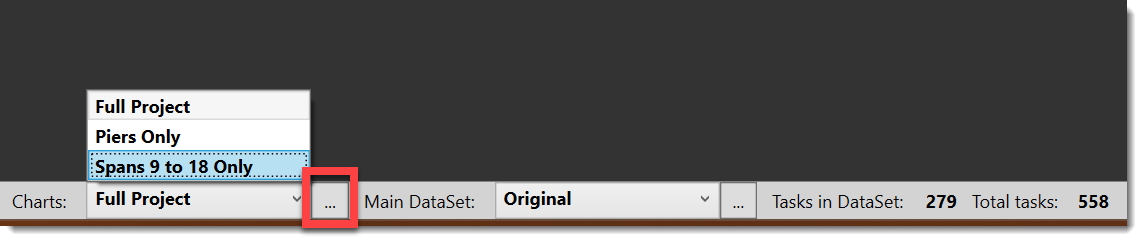

• Clicking on the Manage Charts Button in the lower status bar:

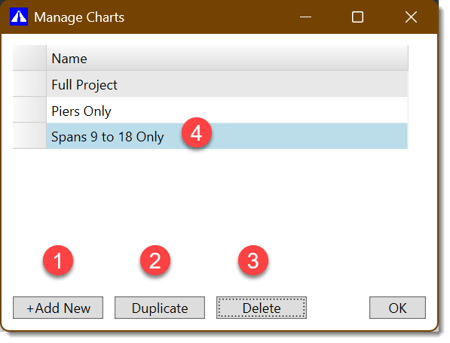

The Manage Charts window can be used to:

1. Create new charts
2. Duplicate an existing Chart,
3. Delete existing Charts, or
4. Renaming a chart

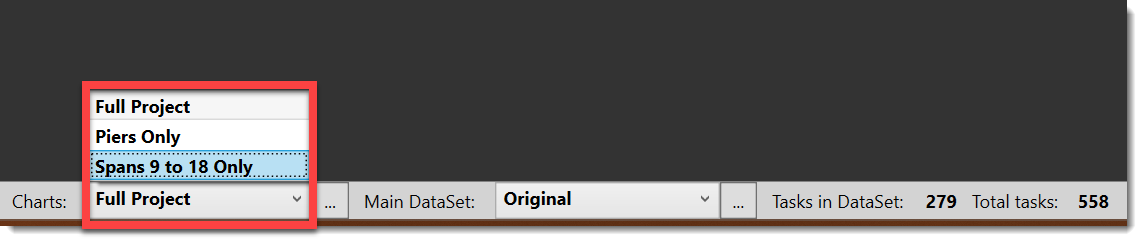

Once a new chart is created, or duplicated, use the lower status bar to select that chart for viewing/editing:
